Spring Swages
These swages are designed for use under a power hammer or treadle hammer.

Pieh Legacy Collection
Victory Forge Springs Swages are all handcrafted from hot rolled 1018 steel. They are made in the United States (Camp Verde, Arizona) by our resident blacksmith instructor Gordon Williams. Be assured each tool is crafted carefully; your satisfaction is guaranteed! We stand behind it!
Ask us about modifying your swage for a nominal fee to fit your power hammer!

As a general rule, spring swages are designed for use on square stock. Square stock produces the best results because there is more material to displace therefore producing better results. They will work on round as well, but will not turn out as nicely-sometimes requiring more clean up on the piece produced. If we make a swage for round specifically, we will indicate this in the products descriptive title. Spring swages can be used by hand at the anvil or power hammer but will produce better results if you build a saddle to go over a power hammer die with a hardy hole in it and weld a hardy stob onto the spring swage; this hardy stob will also allow the spring swage to be used in the hardy hole of your anvil.

!

Pieh Tool Victory Forge Rope Spring Swage

Pieh Tool

Pieh Legacy Collection!

Item #: VFRO38, VFRO12

Pieh Tool Victory Forge Leaf Blank Swage

Pieh Tool
Click to see images of the results.

Pieh Legacy Collection!

Consider using the leaf blank swage in conjunction with our Leaf Sinking and Butt tools. You will be able to easily produce beautiful forges leaves. Available in 3/8" and 1/2"

Item #: VFLB38, VFLB12

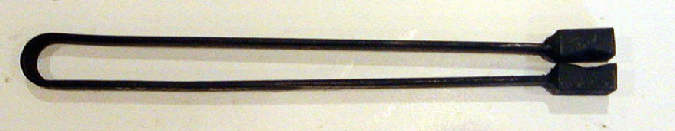

Pieh Tool Victory Forge Ball Spring Swage

Pieh Tool

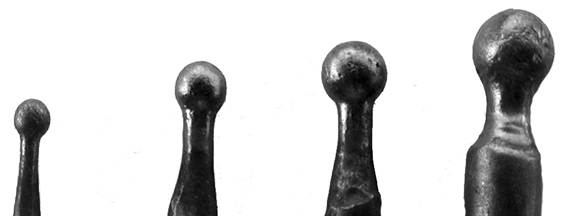

Click to see resluts from this swage.

Pieh Legacy Collection!

Available in 3/8", 1/2", 5/8", 3/4"

Item #: VFBA38, VFBA12, VFBA58, VFBA34

Pieh Tool Victory Forge Acorn Spring Swage

Pieh Tool

Pieh Legacy Collection!

Now you can embellish your projects with beautiful acorns in seconds!

Available in 3/8", 1/2", 3/4", 5/8" & 1"

Item #: VFAC38, VFAC12, VFAC34, VFAC58, VFAC1

Pieh Tool Victory Forge Grape Spring Swage, 5/8 inch

Pieh Tool

Pieh Legacy Collection!

Grapes can add so much to a wine or kitchen shelf. Now you can forge them in seconds!

Item #: VFGR58

Pieh Tool Victory Forge Tenon Spring Swage

Pieh Tool

Pieh Legacy Collection!

Available in 3/16", 1/4", 3/8", 1/2" and 5/8"

The second hole is a little larger to make sizing down easier. For instance the 3/8" swage also has a 7/16" hole.

Item #: VFTE18, VFTE14, VFTE38, VFTE12, VFTE58

Pieh Tool Victory Forge Vine Texture Spring Swage

Pieh Tool

Pieh Legacy Collection!

Swage is for forging round stock.

Item #: VFVTR
